Yitong Machinery | Introduction to YT - 05 Direct - Fired Fully Automatic Wafer Egg Roll Equipment

On the path of pursuing the quality of egg roll products, Yitong Machinery is always by your side. Today, we'd like to introduce the YT - 05 direct - fired fully automatic egg roll equipment. With its features of automatic temperature control and high - level automation, it continues to elevate baked products to a new level, constantly upgrades the egg roll category, and continuously explores the maximum market space.

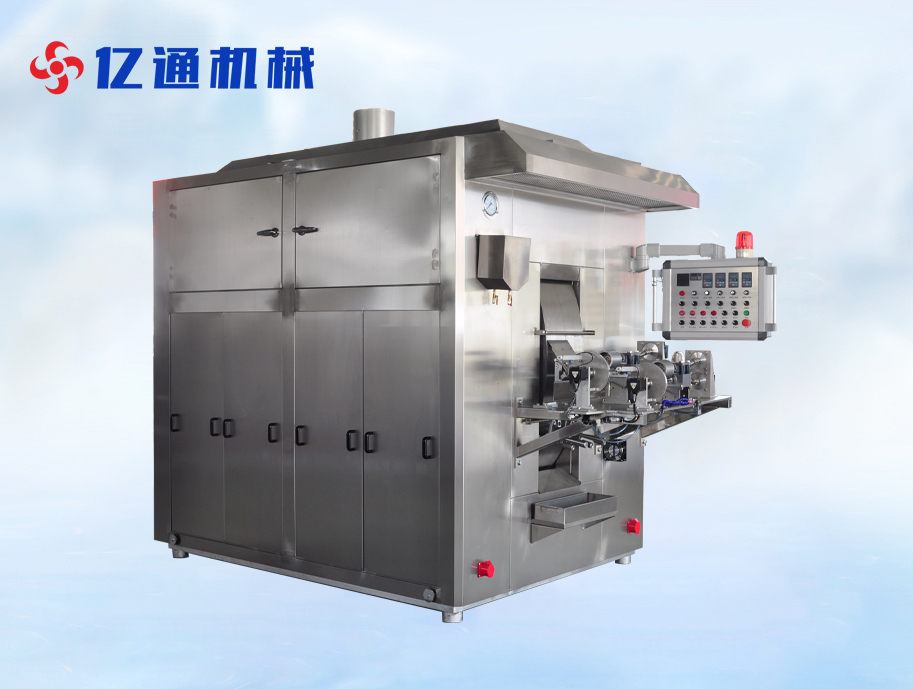

In terms of appearance, the entire set of equipment is an egg - roll - making device formed by a series of technologies including pulp making, sizing, baking and filling, rolling and shaping, cooling, conveying, packaging, and an industrial control electrical control system.

High - efficiency Direct - firing Technology

Energy - saving Control System

Safety and Environmental Protection

Performance Parameters

• Performance: Fully automatic temperature - controlled combustion system. It has safety protection functions, including automatic double - line baking, filling, and rolling - shaping functions.

• Output: Approximately 220 pieces/min (600 kg/8 h)

• Power: 9.7 kw

• Heat Source: Liquefied gas: approximately 5 kg/h; Natural gas: approximately 8 m³/h

• Weight: 4500 kg

• Equipment Floor Area: 15.5 m² (4.2 m×3.7 m)

•
